Specification:
Standard:
TCP/IP
Sensor:
1/2.9 " Progressive Scan CMOS
Matrix size:
3 Mpx
Scanning system:
Progressive
Resolution:
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p
Lens:
4 mm
View angle:
· 82 ° (manufacturer data)
· 78 ° (our tests result)
Range of IR illumination:
30 m
S/N ratio:
> 52 dB
RS-485 interface:
Memory card slot:
Image compression method:
Ultra 265 / H.265 / H.264
Alarm inputs / outputs:
Audio:
Bitrate:
≤ 6144 kbps
Main stream frame rate:
20 fps @ 3 Mpx
25 fps @ 1080p
Network interface:
10/100 Base-T (RJ-45)
Network protocols:
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP
WEB Server:
Built-in
Max. number of on-line users:
10
ONVIF:
17.12
Mobile phones support:
Access by a cloud (P2P)
· Android: Free application Uniarch
· iOS (iPhone): Free application Uniarch
Default IP address:
DHCP or 192.168.1.13
Default admin user / password:
admin / 123456
Web browser access ports:
80, 554
PC client access ports:
Port no.: 80 or access by a cloud (P2P) - PC: Free application Uniarch Client
Mobile client access ports:
80
Port ONVIF:
80
RTSP URL:
rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream
rtsp://192.168.1.13:554/unicast/c1/s1/live - Sub stream
Main features:
· 2D-DNR, 3D-DNR - Digital Noise Reduction
· D-WDR - Wide Dynamic Range
· F-DNR (Defog) - Reduction of image noise caused by precipitation
· ROI - improve the quality of selected parts of image
· BLC/HLC - Back Light / High Light Compensation
· Possibility to change the resolution, quality and bit rate
· Motion Detection
· Configurable Privacy Zones
Power supply:
· PoE (802.3af),
· 12 V DC / 380 mA
Power consumption:
≤ 4.5 W
Housing:
Dome - Plastic + Metal
Color:
White
"Index of Protection":
IP67
Vandal-proof:
Operation temp:
-30 °C ... 60 °C
Weight:
0.29 kg

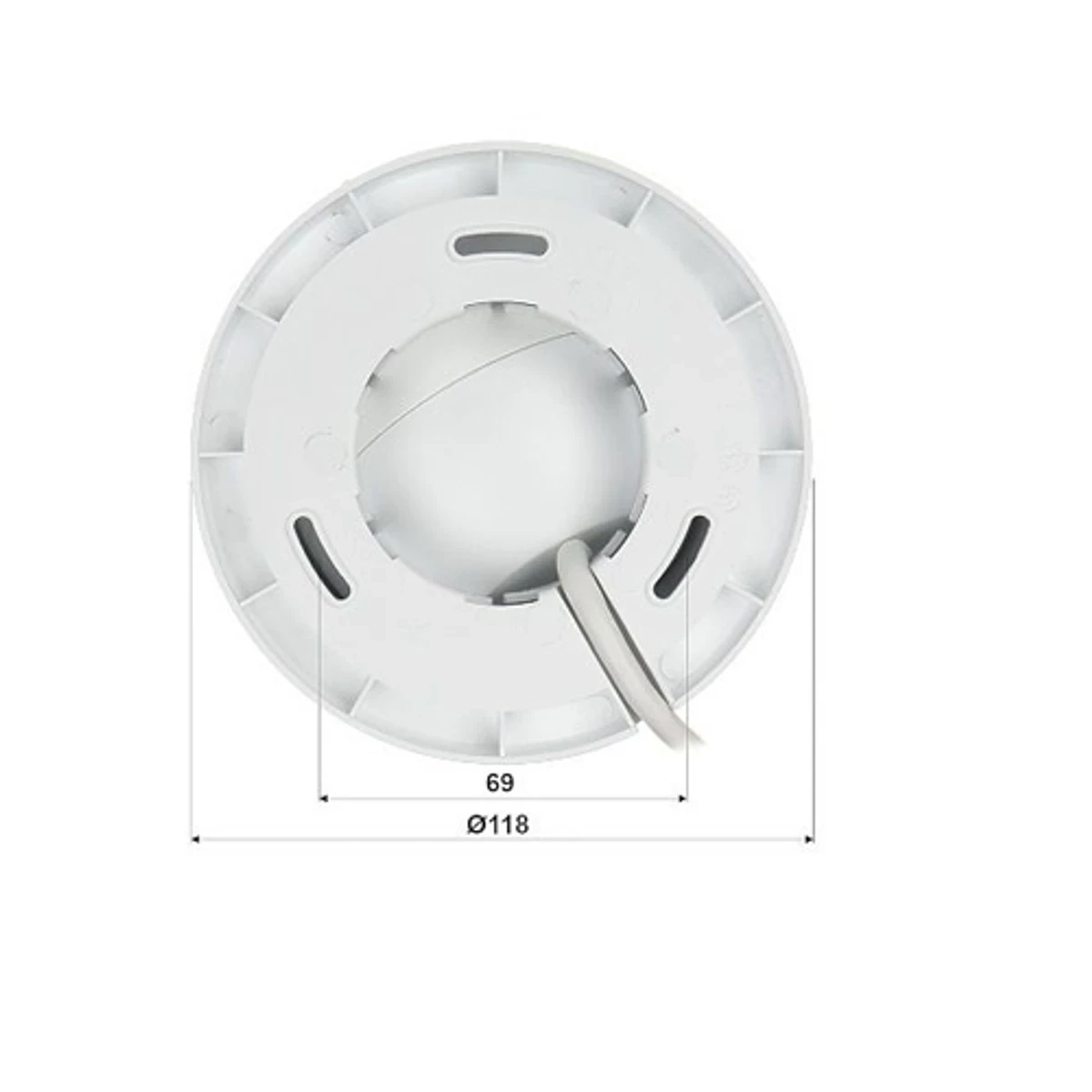

Dimensions:
Ø 118 x 97 mm
Supported languages:
Polish, English, Italian
Manufacturer / Brand:
UNIVIEW / UNIARCH
Guarantee:
3 years
